# Dashboard

Overall Dashboard

The Overall Dashboard provides a clear summary of assistant usage and performance metrics, enabling users to filter and analyze data effectively.

### Filter Options

**1. Filter by Assistant**

* **Default Setting:** Displays the **Top 9 assistants by usage**, with all others grouped under "others."
* **Type:** A **searchable, multi-select dropdown list** for easy assistant selection.

**2. Filter by Date**

* **Default Setting:** Displays data for the last **7 days from today**.
* **Type:** Select a custom **date range** with a start and end date.

### Assistant Performance

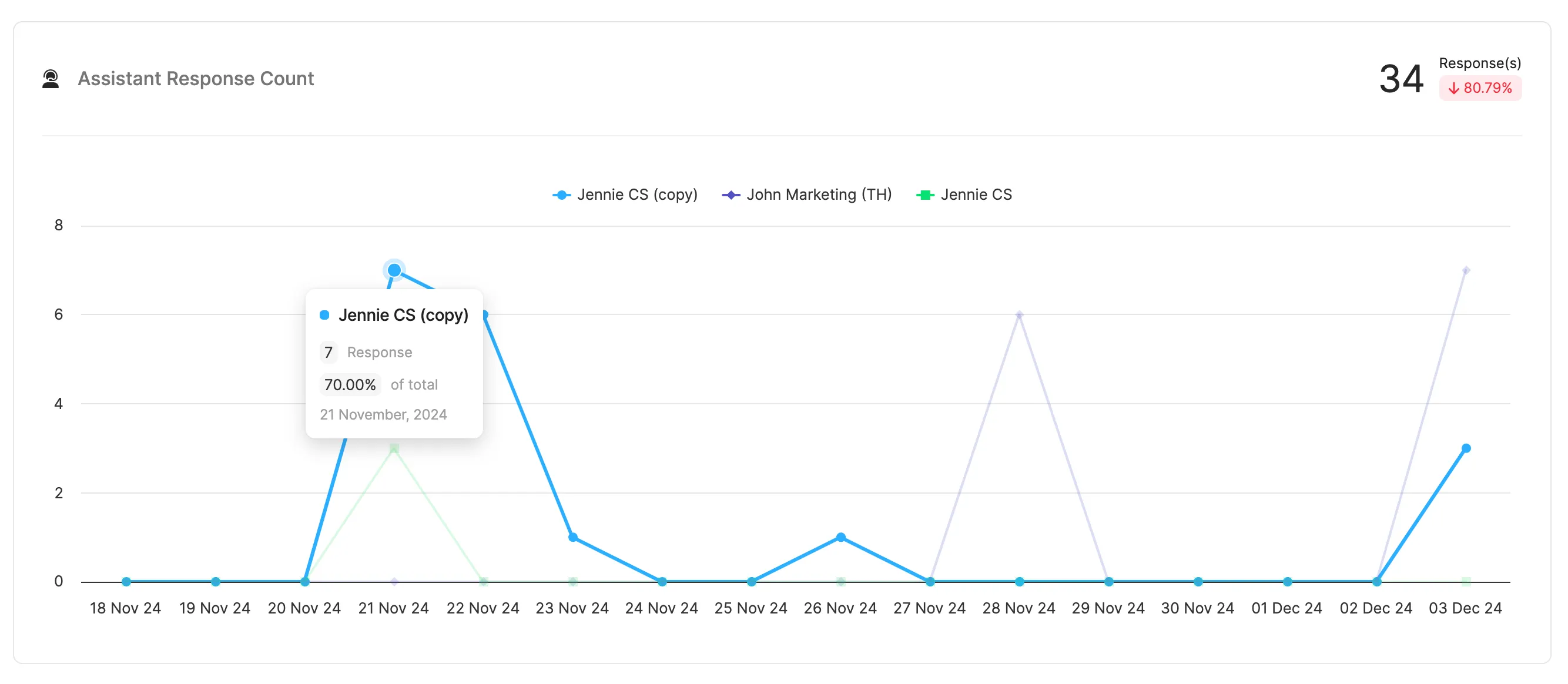

<figure><img src="https://4173380749-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FzKzxNnOaGxZvAEzvYa7y%2Fuploads%2FTYW9hBOuNqpSzSOFAGcZ%2FScreen%20Shot%202567-12-03%20at%2016.12.53.png?alt=media&#x26;token=dd859c1f-3305-4a86-95d9-79feb2261597" alt=""><figcaption><p>Assistant Response Count</p></figcaption></figure>

This section visualizes the total response count for each assistant and compares trends over time.

* **Metric:** Responses per assistant (**unit:** responses).
* **Total Responses:** The sum of all responses across all assistants (**unit:** responses).
* **% Difference:**  Index to shows how much a value has increased or decreased compared to an earlier period  (unit: %)
* **Limitation:** The chart can display up to **10 lines**.

### Memorized Response Coverage

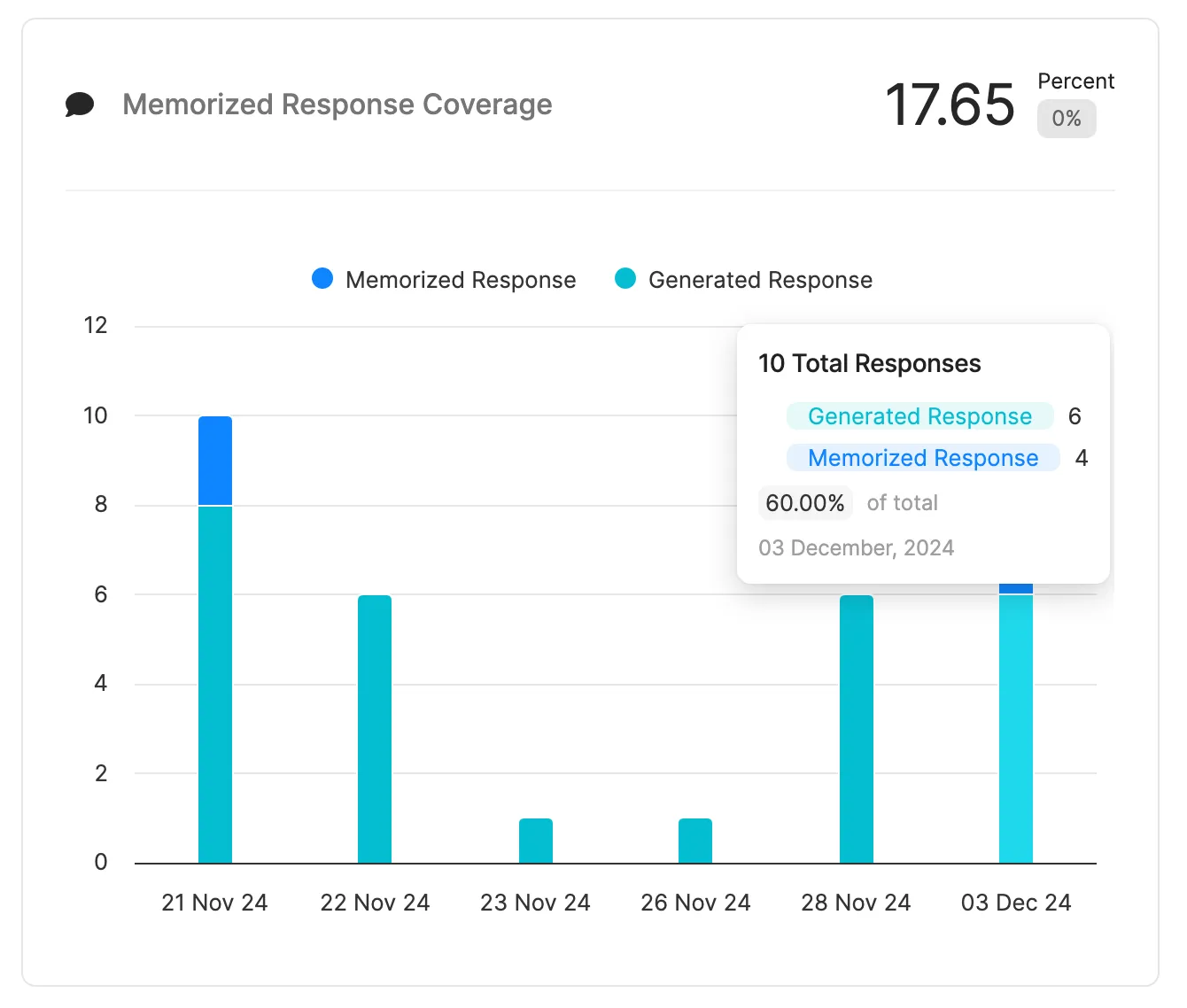

<figure><img src="https://4173380749-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FzKzxNnOaGxZvAEzvYa7y%2Fuploads%2FsYcKKnaEjI252tW124W2%2FScreen%20Shot%202567-12-03%20at%2016.18.28.png?alt=media&#x26;token=0e7879ff-8cfa-4dc8-85af-a003ce647c07" alt="" width="375"><figcaption><p>Memorized Response Coverage</p></figcaption></figure>

This section shows the proportion of reponses utilizing memorized responses.

* **Memorized Response Coverage:** Memorized Response ratio compared with Total of Responses (**unit:** %).
* **Memorized Response:** Responses that used memorized responses (**unit:** responses).
* **Generated Response:** Response that did not use memorized responses (**unit:** responses).

### KM Coverage'

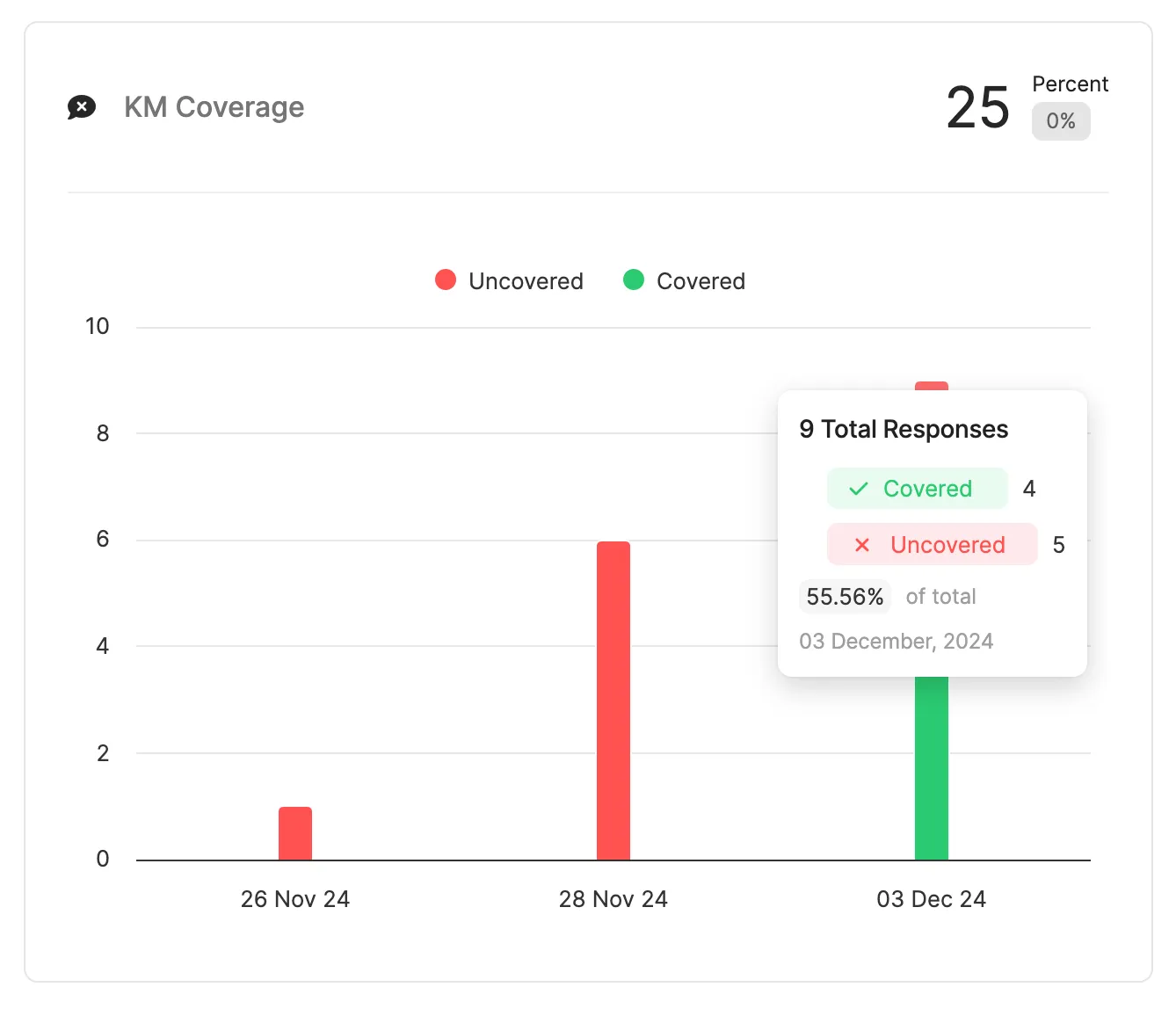

<figure><img src="https://4173380749-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FzKzxNnOaGxZvAEzvYa7y%2Fuploads%2FyCtStXDkYkmVIcWNFGNm%2FScreen%20Shot%202567-12-03%20at%2017.42.33.png?alt=media&#x26;token=f06f197c-7398-44a5-b738-62914722f7a4" alt="" width="375"><figcaption><p>KM Coverage</p></figcaption></figure>

This section provides insights into response utilizing Knowledge Management (KM) for generating responses.

* **KM Coverage:**  KM Response ratio compared with Total of Generated Responses (**unit:** %)
* **Covered Responses:** Responses that used KM to generate responses (**unit:** responses).
* **Uncovered Responses:** Responses that did not use KM to generate responses (**unit:** responses).
